MEMORY MAPS

ALL TDS9092 MEMORY

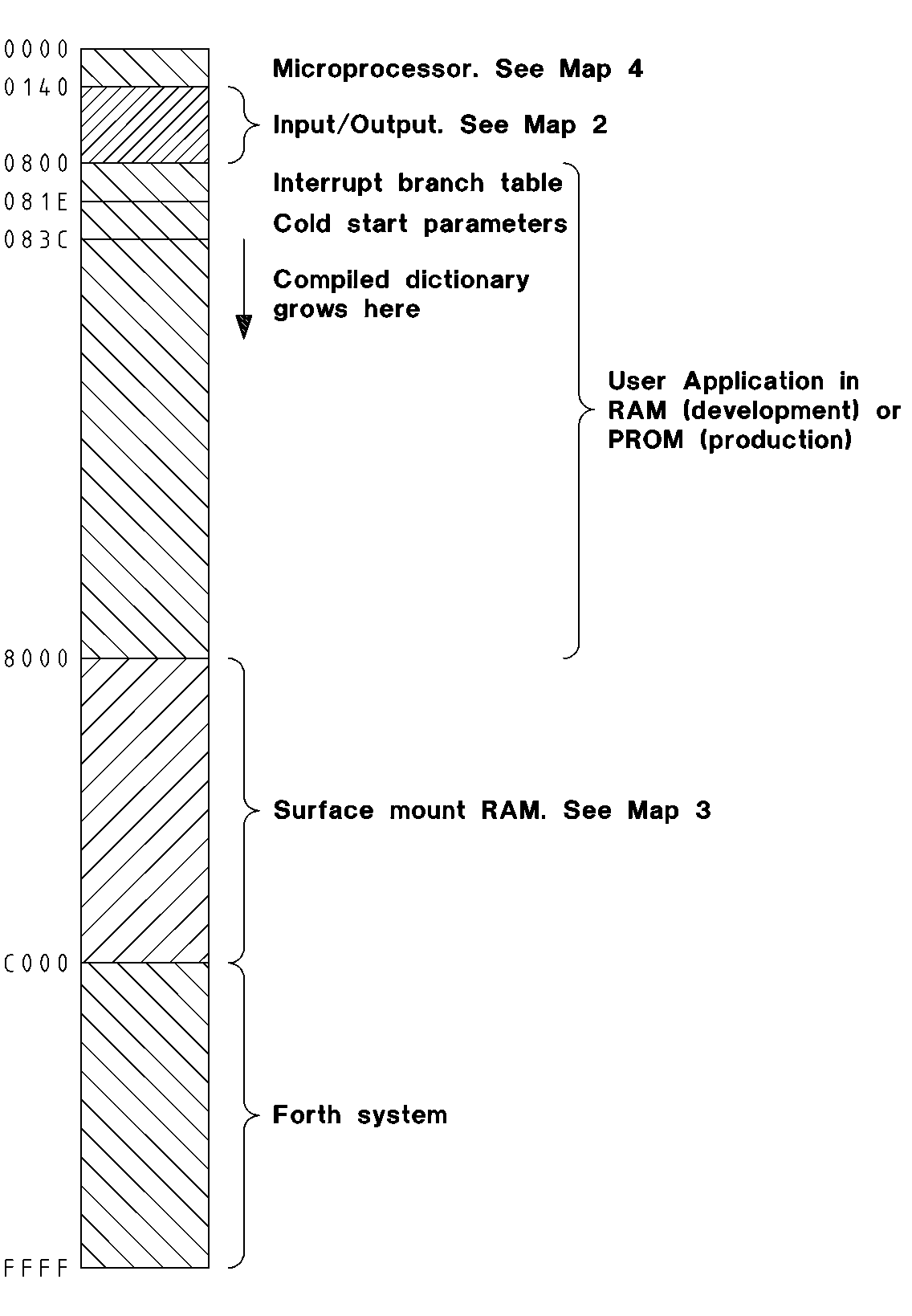

Address map 1 - All TDS9092 memory

Address map 1 All TDS9092 memory
Click the diagram to see more detail

INPUT/OUTPUT

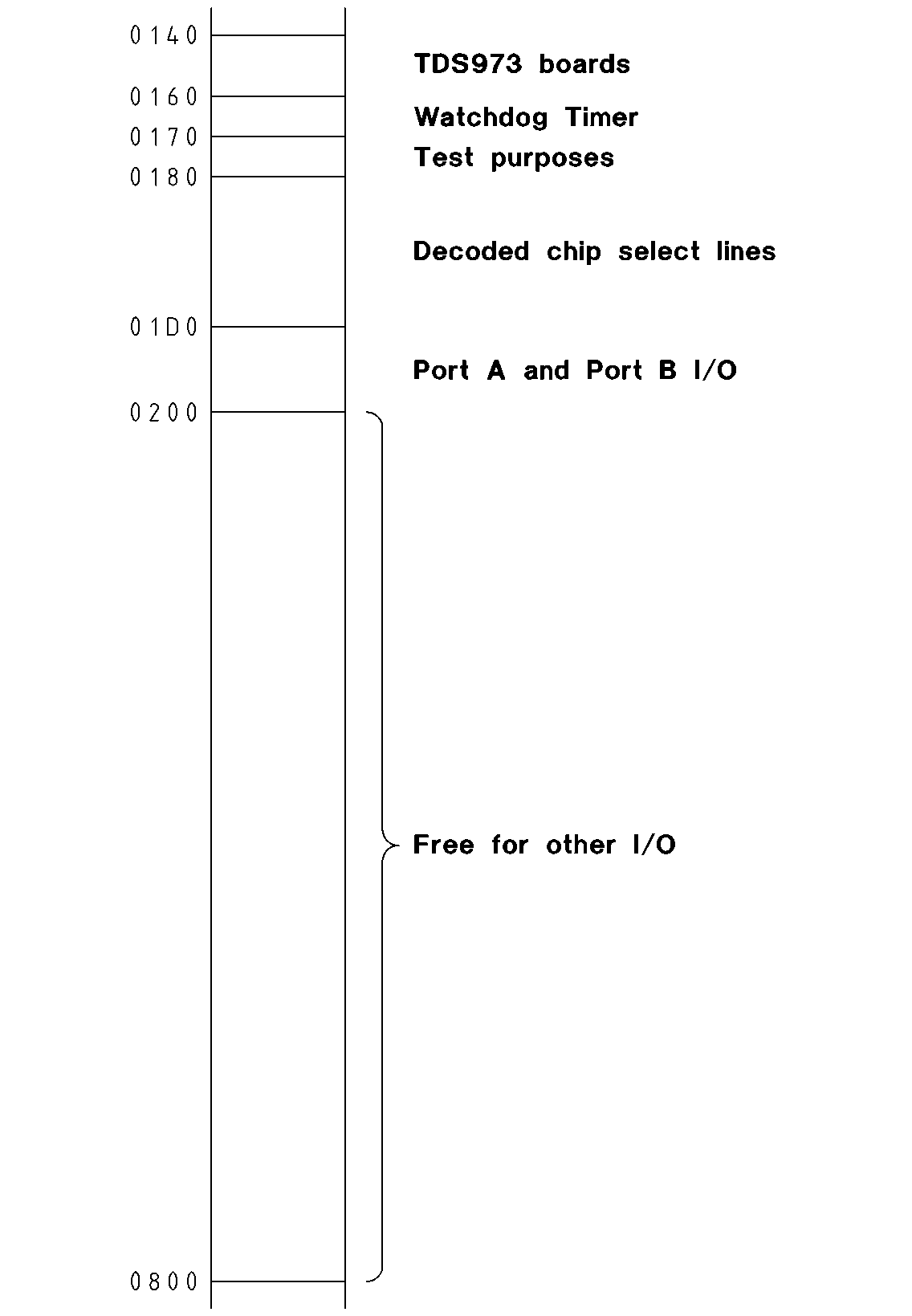

Address map 2 - Input/Output

Address map 2 Input/Output
Click the diagram to see more detail

SURFACE MOUNT RAM

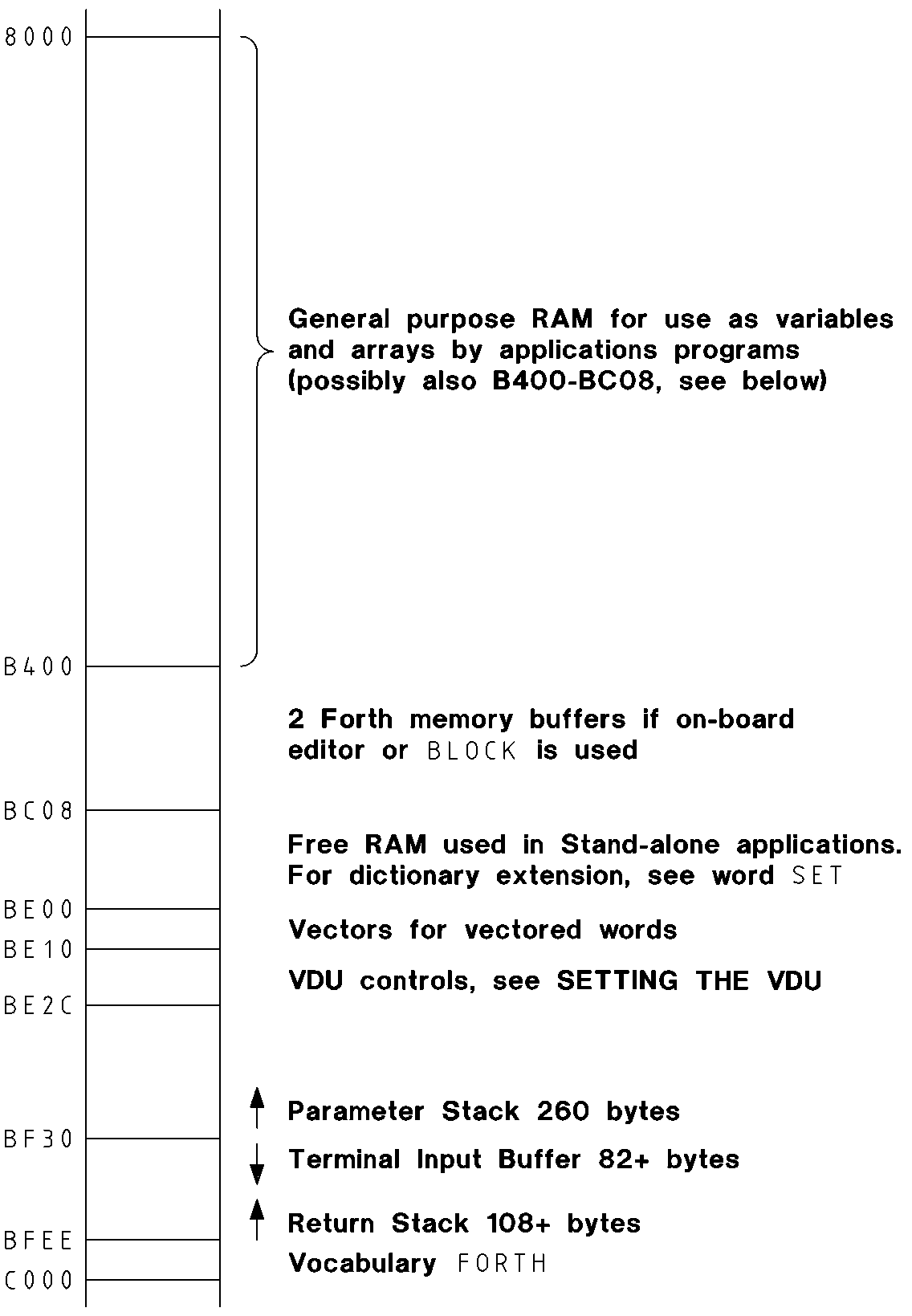

Address map 3 - Surface mount RAM

Address map 3 Surface mount RAM
Click the diagram to see more detail

ON-CHIP RAM & REGISTERS

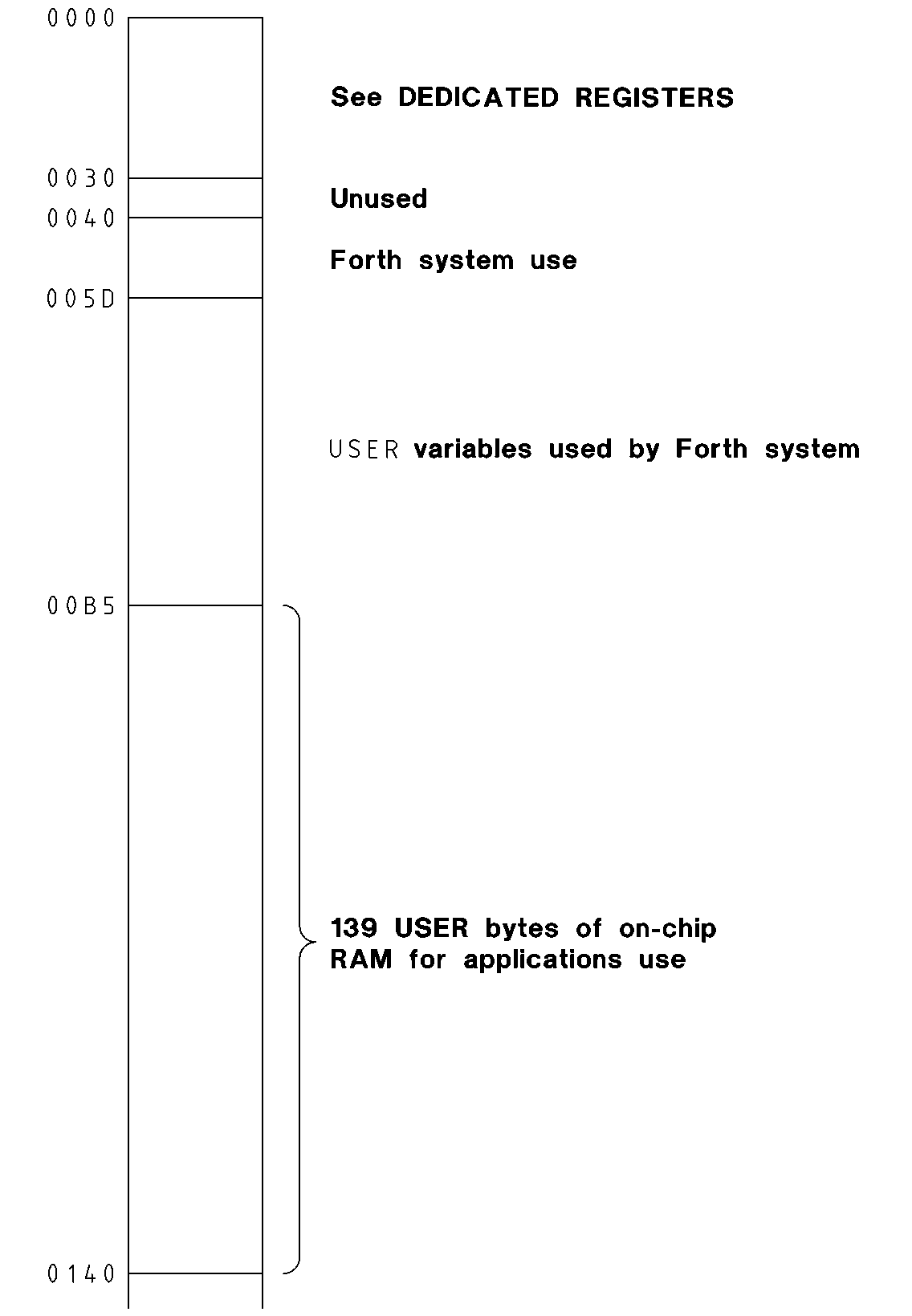

Address map 4 - On-chip RAM & registers

Address map 4 On-chip RAM & registers
Click the diagram to see more detail
